Brooklyn Roof Replacement and Slate Roofing Restoration 102K

client New York City School Construction Authority (SCA)
location 211 45th Street, Brooklyn, NY 11220
school P.S. 102 - The Bay View School
Description Slate Roof Replacement / Flashing & Gutter Restoration

Brooklyn Roof Replacement and Slate Roofing Restoration 102K

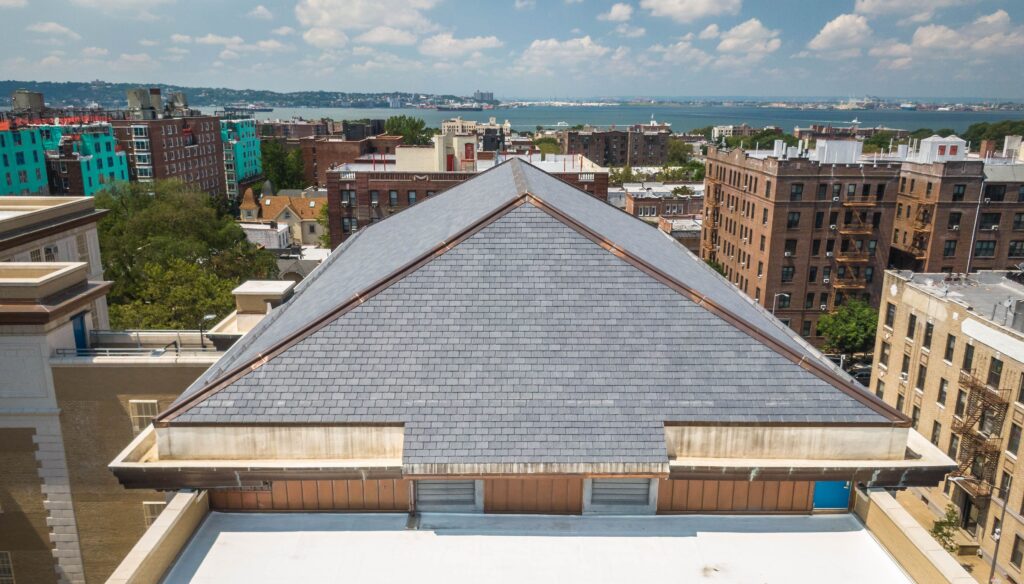

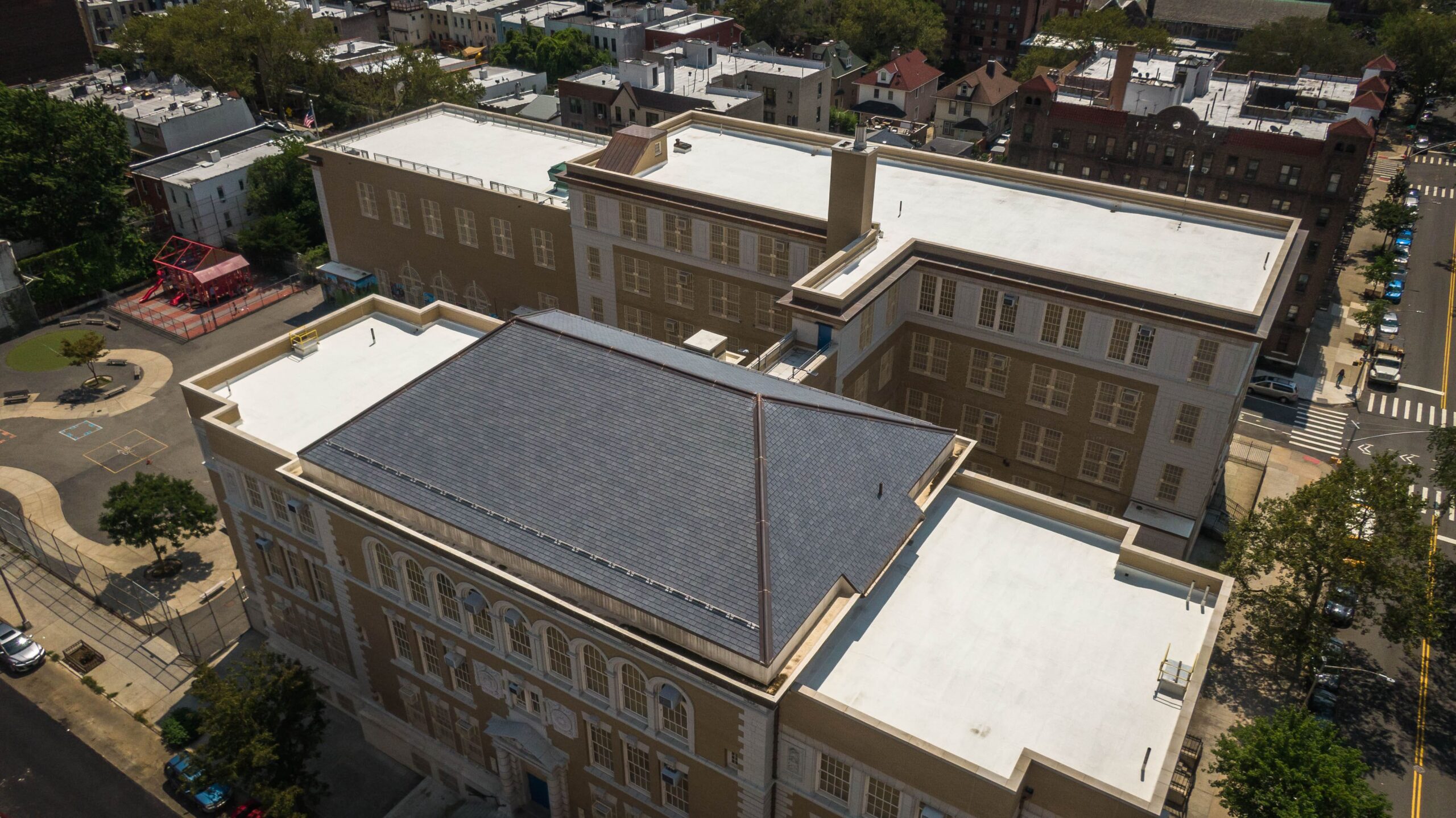

Army Construction LLC was contracted by the New York City School Construction Authority to perform a complete roof restoration and structural envelope rehabilitation at P.S. 102K in Brooklyn, New York. The scope of work included replacement of the existing slate roof system with new natural slate tiles, installation of new flashing and copper gutters, masonry repairs to chimneys and parapets, and the integration of modern waterproofing assemblies--all while preserving the historic character of the school's facade. The project required meticulous coordination and craftsmanship due to its heritage aesthetic and complex roof geometry featuring multiple hip ridges, crickets, and chimney junctions. All work was completed under occupied conditions with strict safety and noise control protocols per SCA standards.

Scope of Work

Fluid-Applied Waterproofing

Installation of **Barrett Ram Primer** and **Barrett Ram Tough 250DM Cold-Applied Waterproofing Membrane**.
Integration of **Barrett Ram 125VP Ply Felt** between layers for reinforced waterproofing.
Application of **Barrett Ram 203 Protection Course** over the completed membrane system to safeguard against physical damage.
Installation of **Barrett Ram 306 Granulated Cap Sheet** at all parapet walls and flashings for superior UV protection.
All flashing and detail work executed per **Barretts manufacturer-approved standards** for a 20-Year NDL Warranty.

Thermal and Surface Protection

Installation of **Rigid Insulation (R-30 value)** meeting SCA and NYC Energy Code performance requirements.
Furnishing and installation of **Westile Concrete Roof Pavers** and accessories, providing a durable, walkable surface for roof access and maintenance zones.

Flashing and Sheet Metal Work

Furnishing of **Stainless Steel Cap Flashing and Coping Flashing** fabricated per SMACNA standards.
Installation of **Stainless Steel Counter Flashing** at exhaust fans, curb penetrations, and roof terminations.

Roof Accessories

Supply and installation of **Bilco Company Roof smoke Vents** as per code compliance.
Coordination of vent curbs, flashing, and penetration sealing with **Barrett system warranty requirements**.

Technical Highlights

Roofing System:: **Barrett RamTough 250** Cold-Applied Multi-Ply SBS System
Insulation System:: Rigid insulation 60psi
Paver System:: **Westile Architectural Concrete Roof Pavers** on adjustable pedestals
Metal Flashing:: Stainless Steel Fabrications per SMACNA guidelines
Drainage:: New cast-iron roof drains with domed strainers and overflow scuppers
Environmental Compliance:: All work completed in accordance with **NYCDEP and OSHA standards** for occupied schools

Project Outcome

The P.S. 746K Roof and Plaza Deck Restoration Project resulted in a fully **modernized waterproofing and insulation system** designed to extend the service life of the facility while reducing future maintenance costs.

By combining **Barretts advanced hot fluid-applied membrane technology** with Westiles architectural pavers and custom stainless steel flashing systems, the project achieved exceptional performance in durability, weather protection, and aesthetic quality.

Army Construction LLC completed the project on schedule and in full compliance with **SCA specifications, manufacturer requirements, and NYC building code standards** ensuring a long-term, watertight solution backed by a **20-Year Barrett NDL Warranty**.
